Remove the windshield washer reservoir.

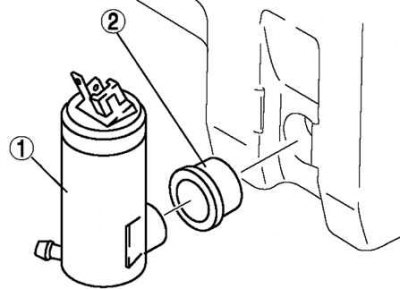

Fig. 7.65. Removing the rear window washer motor: 1 – rear window washer motor; 2 – sealing ring
Remove the rear window washer motor and sealing ring (Fig. 7.65).
Install in the reverse order of removal.
Removal and installation the rear window washer motor (Mazda 3 BK)
Disconnect the negative cable from the battery.
Remove the windshield washer reservoir.
Fig. 7.65. Removing the rear window washer motor: 1 – rear window washer motor; 2 – sealing ring
Remove the rear window washer motor and sealing ring (Fig. 7.65).
Install in the reverse order of removal.
Remove the windshield washer reservoir.
Fig. 7.65. Removing the rear window washer motor: 1 – rear window washer motor; 2 – sealing ring
Remove the rear window washer motor and sealing ring (Fig. 7.65).
Install in the reverse order of removal.
