Fig. 7.59. Removing the windshield wiper arm with the blade: 1 – lid; 2 – nut; 3 – windshield wiper; 4 - windshield wiper blade; 5 – brush
Disassemble in the order shown in Figure 7.59.

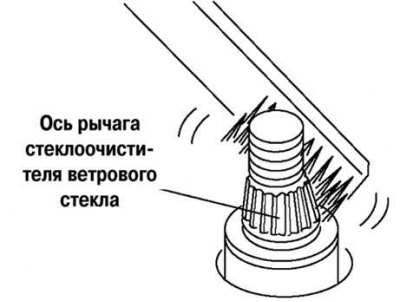

Fig. 7.60. Cleaning the splines of the wiper arm axles
Before installing the windshield wipers, clean the splines of the windshield wiper arm axles using a wire brush (Fig. 7.60).
Install in the reverse order of removal.
Adjust the windshield wiper arm with blade.
