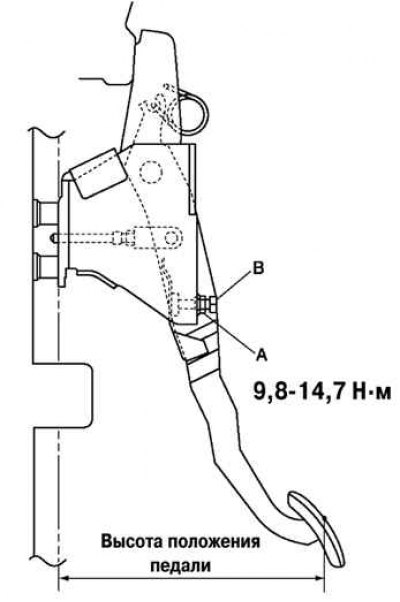

Fig. 3.3. Pedal height adjustment diagram
Measure the distance from the pedal pad to the floor covering. If necessary, adjust the height of the clutch pedal. To do this, loosen the lock nut A and turn the adjusting bolt B until the desired height of the clutch pedal is set. After adjustment, tighten the lock nut (Fig. 3.3).
Pedal height: 210–216 mm.
