Remove the fuel injectors together with the fuel distributor without disconnecting the fuel supply hose.

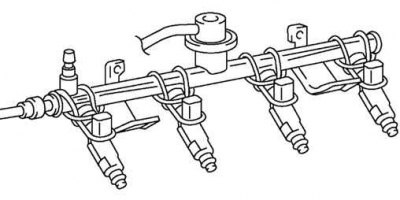

Fig. 2.219. Fuel distributor and fuel injectors secured with wire
Secure the fuel injectors firmly to the fuel distributor using wire (fig. 2.219).
Connect the negative battery cable.

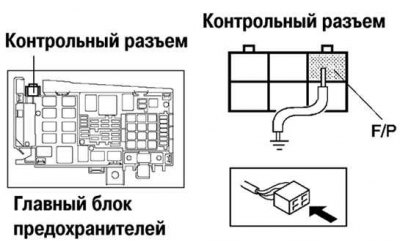

Fig. 2.220. Connection diagram of the F/P control connector output to the GND body ground using a jumper
Connect the F/P control connector terminal to the GND body ground using a jumper wire (fig. 2.220).
Turn the ignition key to the ON position to turn on the fuel pump.

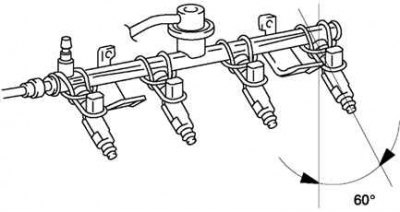

Fig. 2.221. Fuel injector angle
Tilt the fuel injectors approximately 60 degrees (fig. 2.221).
[The original text can be found on www.MAZbook.ru]
Check for fuel leakage from the fuel injector nozzles. If the leakage is greater than normal, replace the fuel injector.
Normal fuel leakage is less than 1 drop in 2 minutes.
Turn the ignition key to the LOCK position and remove the jumper wire.
Install the fuel distributor back into place.
