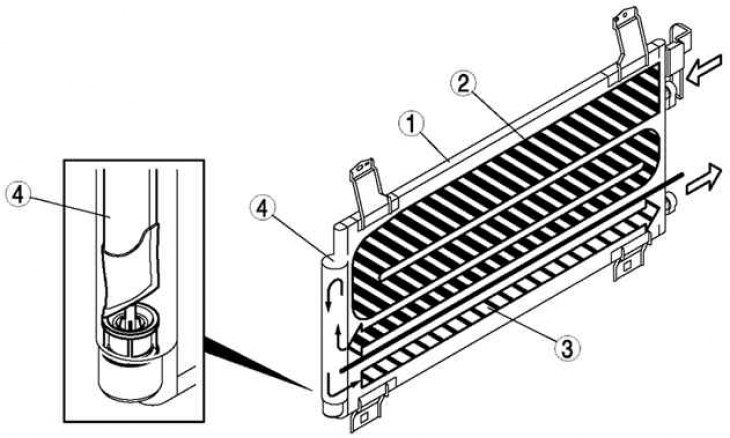

Fig. 8.83. Capacitor: 1 – capacitor; 2 – cooling element; 3 – additional cooling element; 4 – receiver/moisture separator
The condenser (Fig. 8.83) with additional cooling separates the gas and liquid phases of the refrigerant, initially cooled in the condenser, in a receiver/separator where the refrigerant is returned to the additional cooling element and cooled again to accelerate liquefaction and improve cooling capacity.
