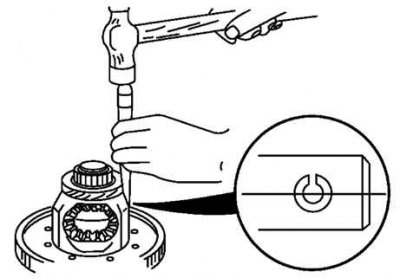

Fig. 3.53. Installing a new cylindrical pin
Install a new roll pin as shown in Figure 3.53 to hold the planet shaft.
Measure the gap according to the following procedure.
Install the left and right drive shafts into the differential.
Support the drive shafts with prisms.

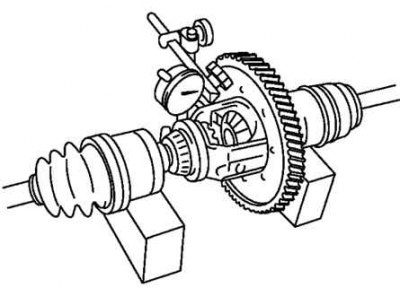

Fig. 3.54. Measuring the satellite clearance
Measure the clearance of both satellites (Fig. 3.54).
Gap: 0.050–0.150 mm.
If the measurement results differ from the norm, replace worn or damaged parts.
