Loosen lock nut D and turn rod C to adjust the height.
Tighten bolt with lock nut B.
Tightening torque: 9.8–14.7 Nm.

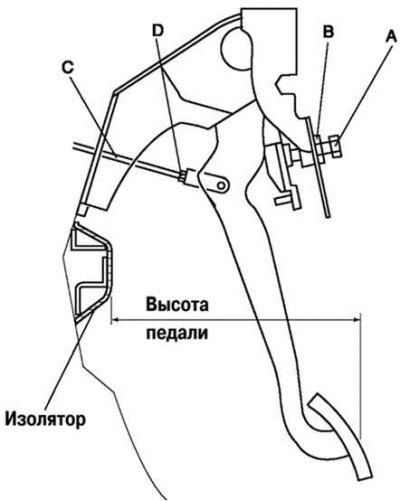

Fig. 6.15. Checking the height of the brake pedal position
After adjustment, check the pedal clearance and the operation of the brake signal (Fig. 6.15).
