Removal the crankshaft pulley mounting bolt (Mazda 6 GG)

0

Remove the lower cylinder block plug.

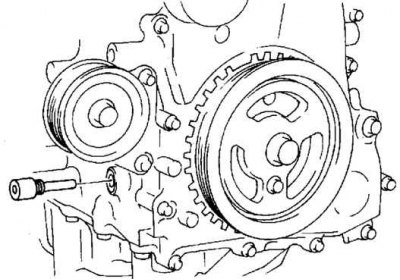

Fig. 2.103. Installation of a special device

Fig. 2.103. Installation of a special device

Install a special device (fig. 2.103).

Turn the crankshaft clockwise to TDC of the piston of cylinder No.1.

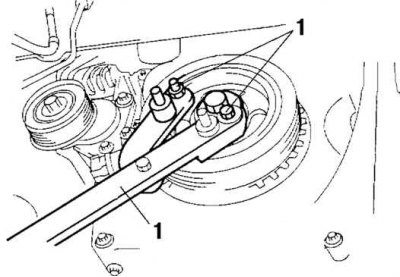

Fig. 2.104. Installing a special device on the crankshaft: 1 - special device

Fig. 2.104. Installing a special device on the crankshaft: 1 - special device

Hold the crankshaft with a special device (fig. 2.104).
