Warning! Do not allow passengers to stand up or stick body parts or objects out of the sunroof while the vehicle is moving. Before closing the sunroof, make sure that the sunroof opening is clear and that no passenger can get parts of their body caught. Careless closing of the sunroof may be dangerous.
Note: After washing the car or after rain, remove water from the sunroof cover before opening it. This is necessary to prevent water from entering the interior, which can cause corrosion of the body and damage to the headliner.
To automatically lift the lid completely, press the rear edge of the "TILT" switch button (Raising and lowering). If it is necessary to stop the cover in an intermediate position, press any edge of the lift-lower switch or the switch for longitudinal movement of the hatch cover. In order to close the cover and bring it to the required position, press the front edge of any of the two "SLIDE" or "TILT" buttons.
To automatically slide the cover completely, press the rear edge of the "SLIDE" key. If you want to stop the cover in an intermediate position, press either edge of the "TILT" key (Raising and lowering) or the "SLIDE" keys (Longitudinal movement of the hatch cover). To close the lid and bring it to the required position, press the front edge of any of the two keys "SLIDE" or "TILT".

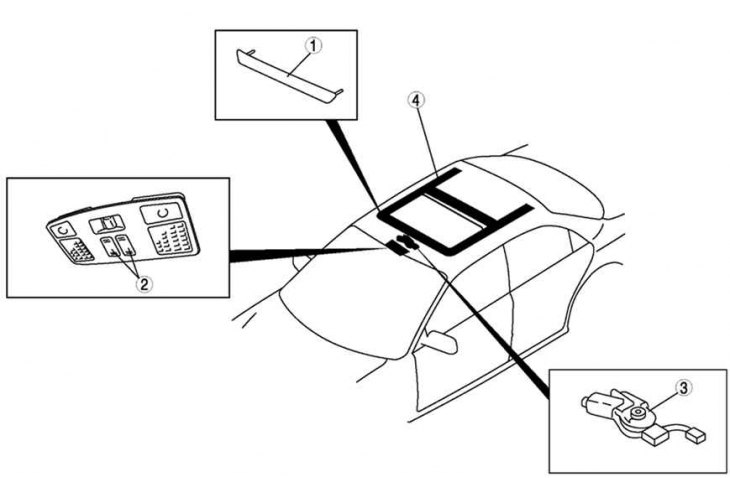

Fig. 8.55. Roof hatch: 1 – deflector; 2 – hatch switch; 3 – sunroof electric motor; 4 – hatch block

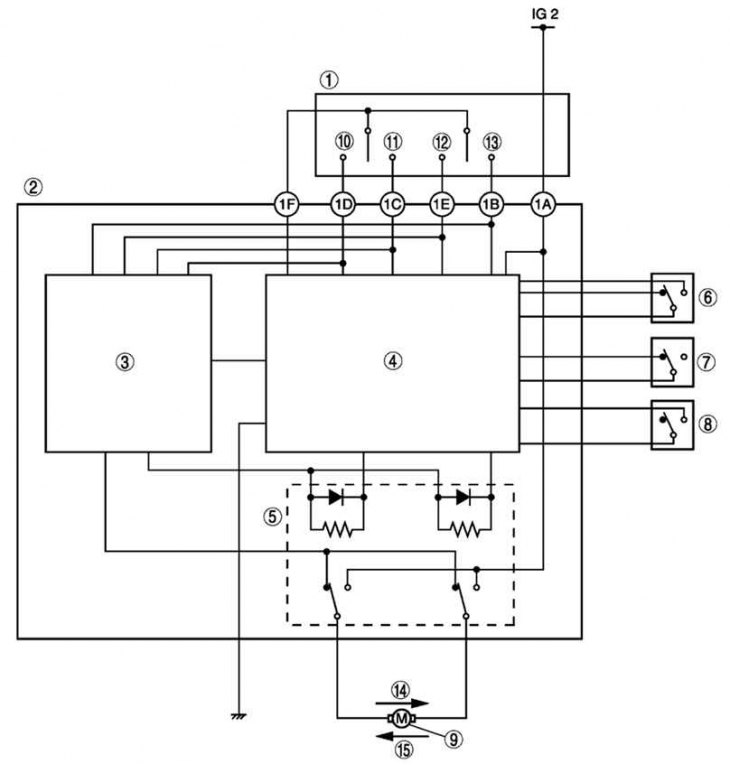

Fig. 8.56. Electric sunroof system wiring diagram: 1 – hatch switch; 2 – sunroof relay; 3 – engine control circuit; 4 – Engine blocking current detection circuit; 5 – relay; 6 – limit switch No.1; 7 – limit switch No.2; 8 – limit switch No.3; 9 – sunroof electric motor; 10 – open; 11 – closed; 12 – tilt down; 13 – tilt up; 14 – open/tilt down; 15 – close/tilt up
