Shift lock system
How to read electrical diagrams you can learn here →
The original text is published on: MAZBOOK

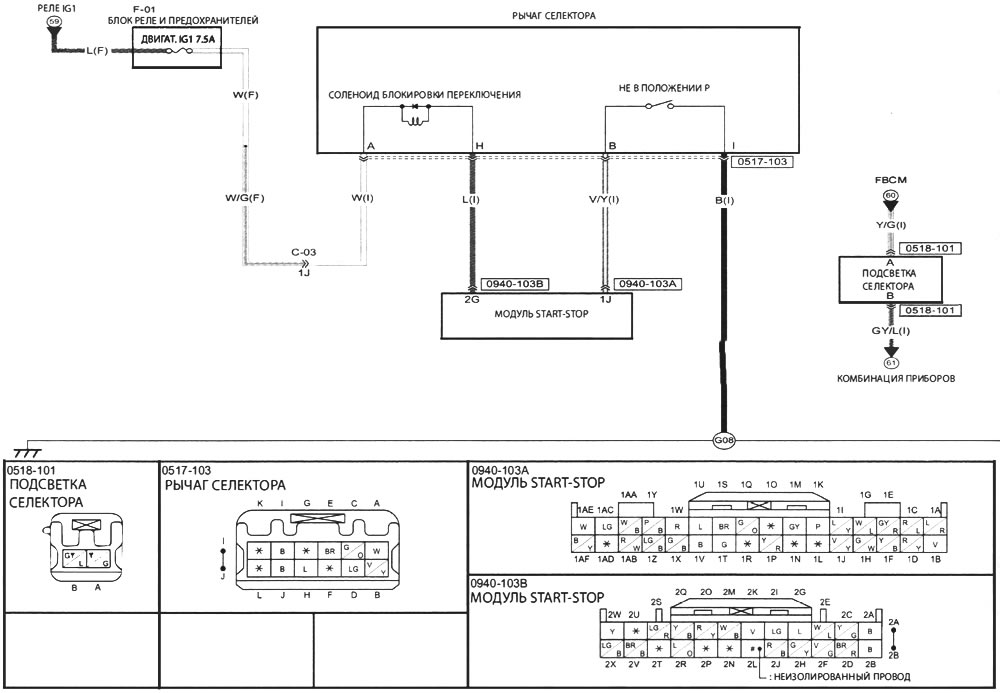

Shift lock system (Mazda CX-5KE)
How to read electrical diagrams you can learn here →
The original text is published on: MAZBOOK
This article is available at: russian, bulgarian, belarusian, ukrainian, serbian, croatian, romanian, polish, slovak, hungarian
This text was checked by: Evgeny Mereshnikov
