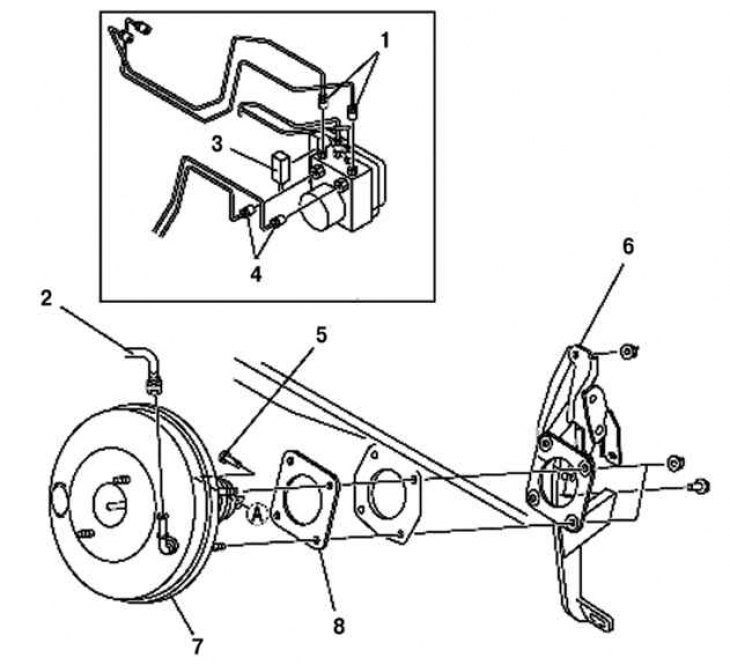

Fig. 6.30. Components of the brake booster: 1 – brake line; 2 – vacuum hose; 3 – connector; 4 – brake line; 5 – hinge axis; 6 – brake pedal assembly; 7 – brake booster; 8 – gasket
Removal
Remove the battery and battery tray.
Remove the master cylinder.
Disconnect the brake line.
Disconnect the vacuum hoses.
Remove the brake pedal mounting bolt and nuts.
Move the brake booster to the rear of the vehicle.
Remove the brake pedal assembly.
Installation
Installation is carried out in the reverse order of removal.
After installation, check the brake pedal.
