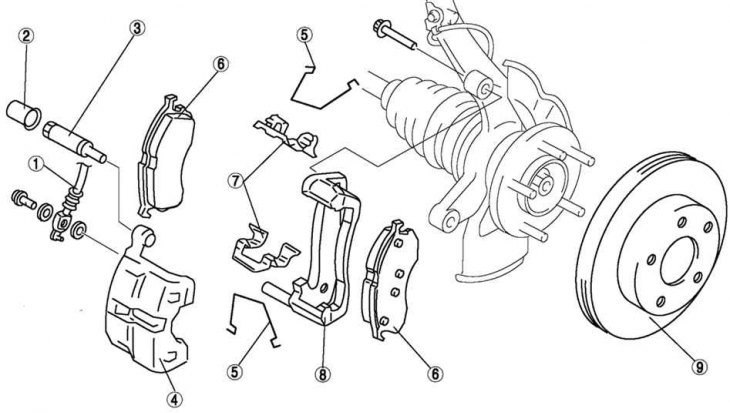

Fig. 6.34. Front brake mechanism: 1 – flexible hose; 2 – lid; 3 – guide pin; 4 – support; 5 – M-shaped spring; 6 – brake disc pad; 7 – guide plate; 8 – support; 9 – brake disc
The front brake mechanism is shown in Fig. 6.34.
Removal and installation the front brake disc (Mazda 6 GG)
Fig. 6.34. Front brake mechanism: 1 – flexible hose; 2 – lid; 3 – guide pin; 4 – support; 5 – M-shaped spring; 6 – brake disc pad; 7 – guide plate; 8 – support; 9 – brake disc
The front brake mechanism is shown in Fig. 6.34.
