Contents: Operating fluids ⇓ Filling volumes of units and systems ⇓ Tires ⇓ Tyre speed rating designation ⇓ Tire pressure ⇓

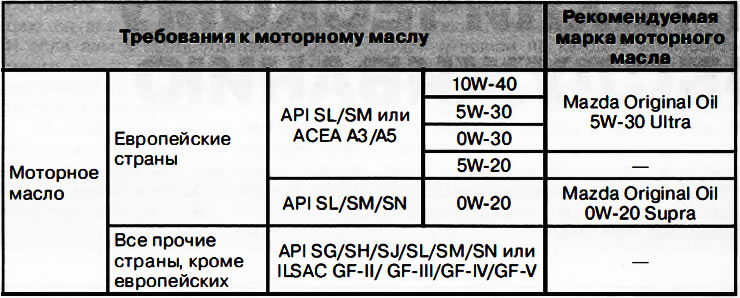

Operating fluids
Filling volumes of units and systems
(Based on website data MAZBOOK.RU)
Note: The table shows approximate values.
Monitor the levels of oils, working and operating fluids using the dipstick or the marks on the wall of the corresponding container.
Tires

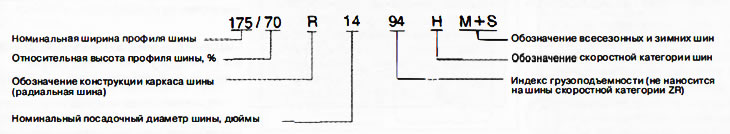

Example of tire marking

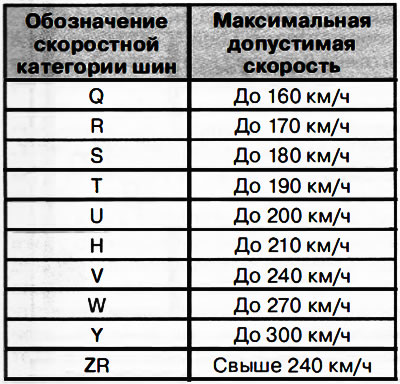

Tyre speed rating designation
Choose tires that match the speed characteristics of your vehicle.

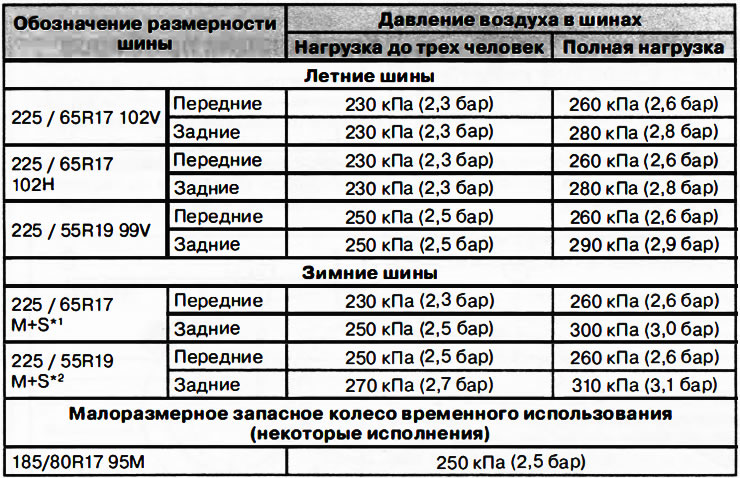

Tire pressure
Note: The tires installed on your vehicle at the assembly plant are the best fit for your vehicle's chassis. When replacing tires, it is recommended that you use tires of the same brand, model, and size as those originally installed on your vehicle at the assembly plant. For more information, contact your authorized Mazda dealer.
Note:
- *1 Load index and speed category 102Q/102S/102H/102V
- *2 Load index and speed category 99Q/99S/99H/99V
- The average weight of one passenger is 75 kg.
