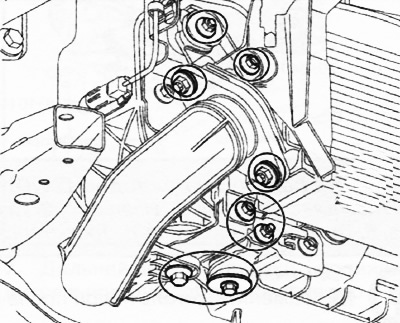

1. Intercooler outlet air duct.
2. Intercooler intake air duct.
3. Intercooler.
Note:replace the part with a new one after each removal.
1. Disconnect the negative battery terminal.
2. Remove the front bumper.
3. Disconnect the intercooler outlet and inlet air ducts.
4. Loosen the mounting bolts and nuts and remove the air cooler from the vehicle.
5. Installation is carried out in the reverse order of removal, taking into account the following:

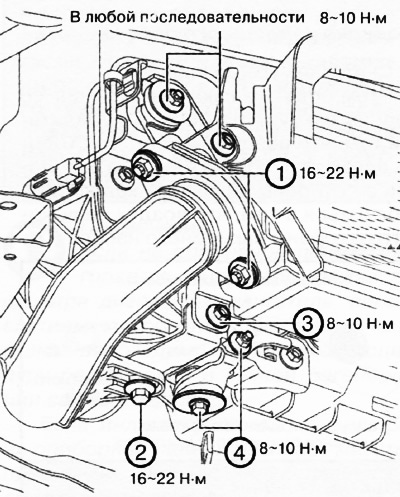

Tighten the bolts and nuts shown in the figure.
Tighten the air-to-air intercooler mounting bolts and nuts in the sequence shown in the figure.
