Replacing valve guide bushings (Mazda CX-5KE)

0

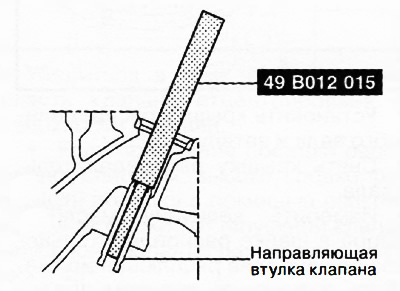

1. Using a punch, knock out the valve guide bushing from the combustion chamber side.

1. Using a punch, knock out the valve guide bushing from the combustion chamber side.

2. Apply clean engine oil to the new valve guide.

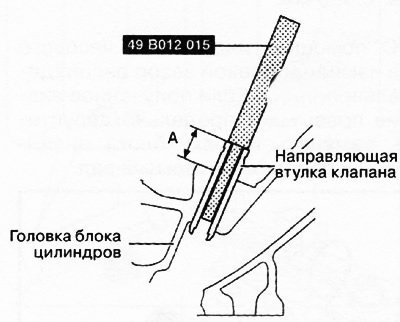

3. Using a drift, drive in the new valve guide bushing from the camshaft side so that the protrusion height (dimension A) complies with the standard.

3. Using a drift, drive in the new valve guide bushing from the camshaft side so that the…

Note: Standard valve guide protrusion height (inlet/outlet): 16.4-17.0 mm.

(The full text is on the website: «MazBook»)
