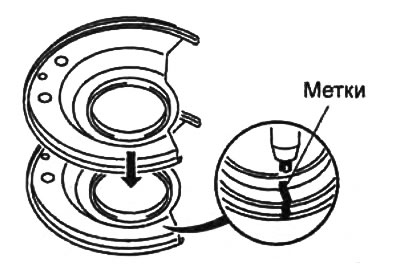

A) Mark the new shield in the same place as the old one.
b) Align the marks on the new shield and steering knuckle.

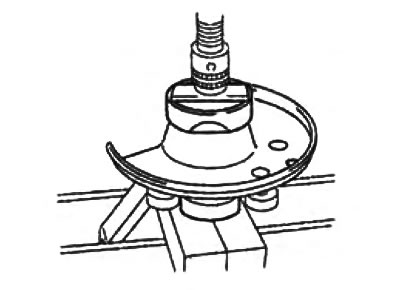

V) Using mandrels and a press, press a new mudguard onto the steering knuckle.

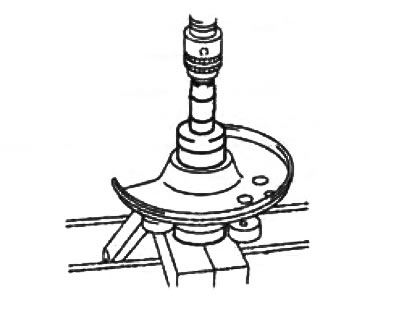

2. Using a press and a special tool, install a new bearing on the steering knuckle.

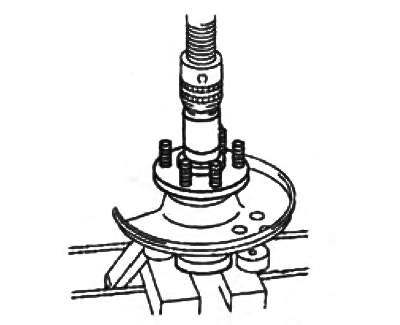

3. Using a press and a special tool, install the hub onto the steering knuckle.
4. Install the gland.
With) Apply grease to the sealing lip of the stuffing box.

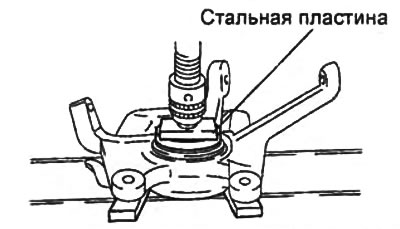

b) Using a press, mandrels and table plate, install the gland.
5. Install a new hub nut.
A) Tighten the hub nut to the specified torque.
- Tightening torque - 235 - 314 Nm

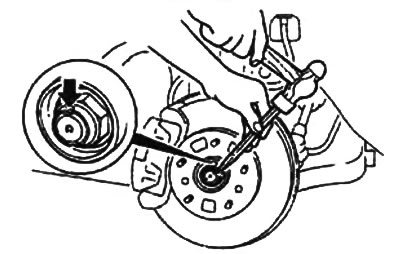

b) Using a hammer and chisel, lock the hub nut.
- Maximum locking depth - 0.5 mm
